Hands-free Communication at the Highest Level

Custom-fitted Solutions - Our vicCOM Product Family.

Conventional intercom systems are equipped with direction switching based upon the speech power level (half-duplex). This prevents natural communication, i.e. double talk, and show bad robustness in situations with strong background noise.

The vicCOM-products of voice INTER connect are industrial intercom modules, which use patented algorithms for acoustic echo cancellation (AEC) and noise reduction (NR). The industrial intercom modules provide a natural, crystal-clear full-duplex communication in both directions - even under the most difficult environmental conditions (e.g. discussions, traffic and industrial noise). Excellent speech quality and high comprehensibility are achieved by an effective background noise suppression of our intercom moduls.

voice INTER connect offers with the vicCOM intercom module family multiple alternatives for different customer demands. Our specialists assist you in chosing the right intercom module for your product and implement it into your application.

Products

  • SoC MODULE

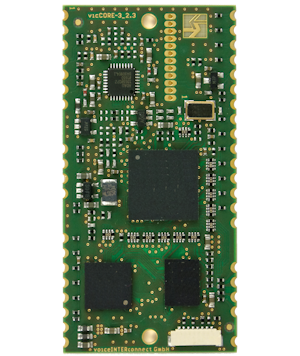

    vicCOM 2

    You would like to integrate a hands-free intercom module in your layout or your already existing product?
  • System Kit

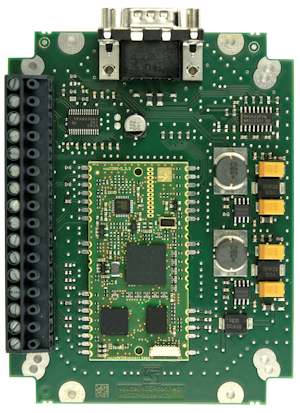

    vicCOM-complete 2

    You would like to integrate a hands-free intercom system in your communication equipment?
  • GSM Connection

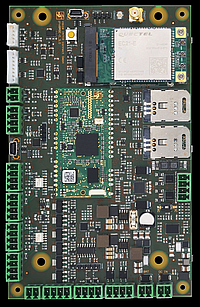

    vicCOM-GSM-complete

    You need a hands-free intercom system for communication in GSM-network?
  • Distributed communication

    vicCOM-ART

    You would like to connect several intercom units?

Product Overview



vicCOM 2

vicCOM-complete2

vicCOM-GSM-2

  vicCOM 2 module vicCOM complete 2 board vicCOM-GSM 2 board
Signal Processing
AEC (NR) x x x
LEC x x x
LC x x x
Limiter x x x
Noise Gate x x x
Compressor x x x
EQ x x
Notch x x
Audio
Micro (electret) x x x
Micro (line) x
Loudspeaker (line) x x
Loudspeaker (amplifier)   x 2
Line analogue / digital analogue GSM/LTE
Interfaces
UART 2   x
RS232   x x
I2C x
I2S x
GPIO 16 4 8
Connections edge screw clamp screw clamp
Alternative connection 12-pin connection
Power supply voltage 3,3 V 12 V 8-24 V
